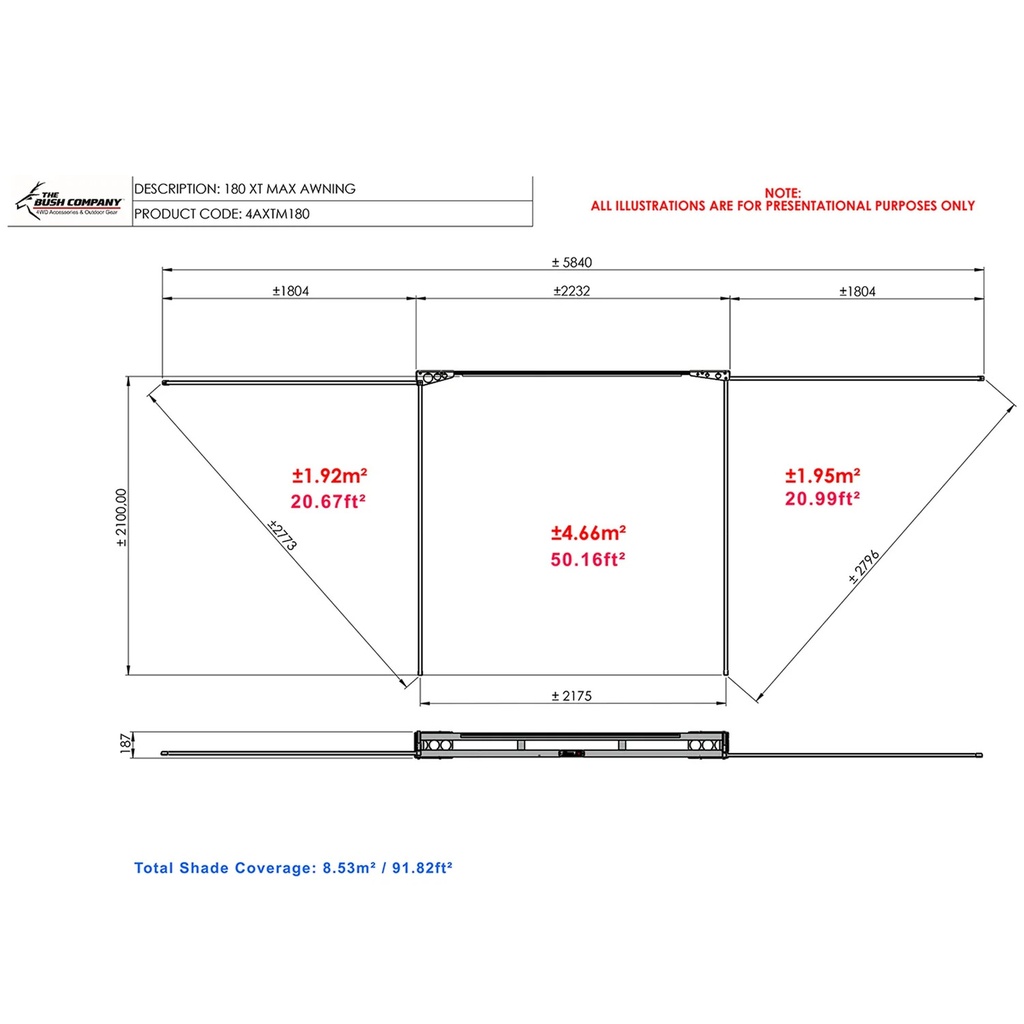

The 180 XT Awning is engineered with our proprietary B-Tech™ Alloy, is fully freestanding and built to endure the toughest conditions. The combination of forward and rear folding arms gives the 180 XT MAX Awning an incredible +/-8.53m2 / 91.8ft of shade and has a total length of 5.84m/19'11⁵⁹/₆₄" from end to end,
The awning has two fully trussed arms at 90o degrees at each end of the frame, and additional reinforced arms at the front and rear of the awning that fold out to be parallel with your vehicle.
When packed away the awning is 2.3m/7'6" long, weighs only 26Kg/ 57lb 5.1oz and can set up or packed away by one person in around 30 seconds.
Frame Construction:
Heavy-duty stainless steel hinges at both ends.
The frame is reinforced with gusseted arms for superior strength and durability, without needing poles.
Engineered with our proprietary B-Tech™ Alloy, extruded for superior durability and unique elasticity.
Canvas:
310gsm/11.3oz poly-cotton rip-stop in olive green.
Mould, mildew, and water-resistant.
Triple reinforcement at attachment points and triple-stitched sleeves for the arms.
Easily repairable or replaceable if punctured, for lasting use.
Inclusions & Usage:

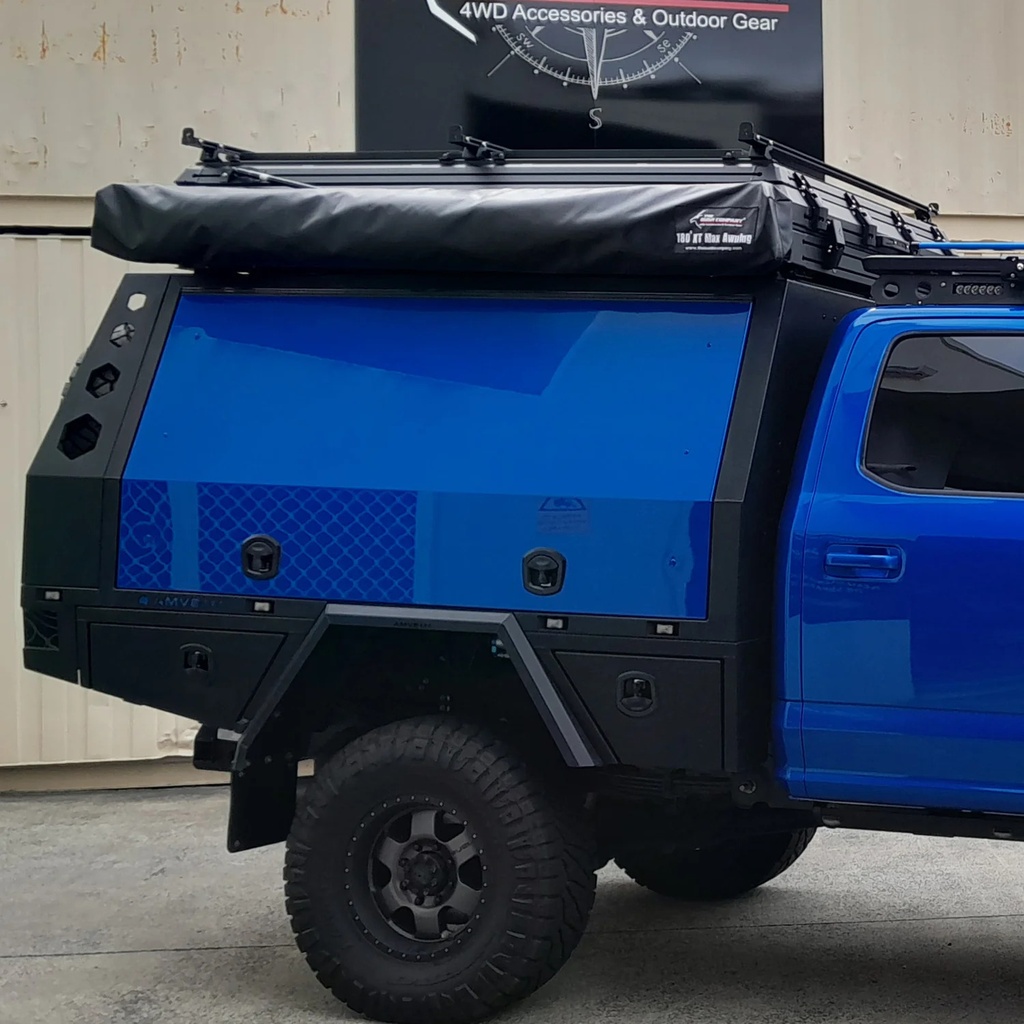

Heavy-duty PVC awning bag generously sized for easier packing, UV and heat-stabilized to resist wear and tear.

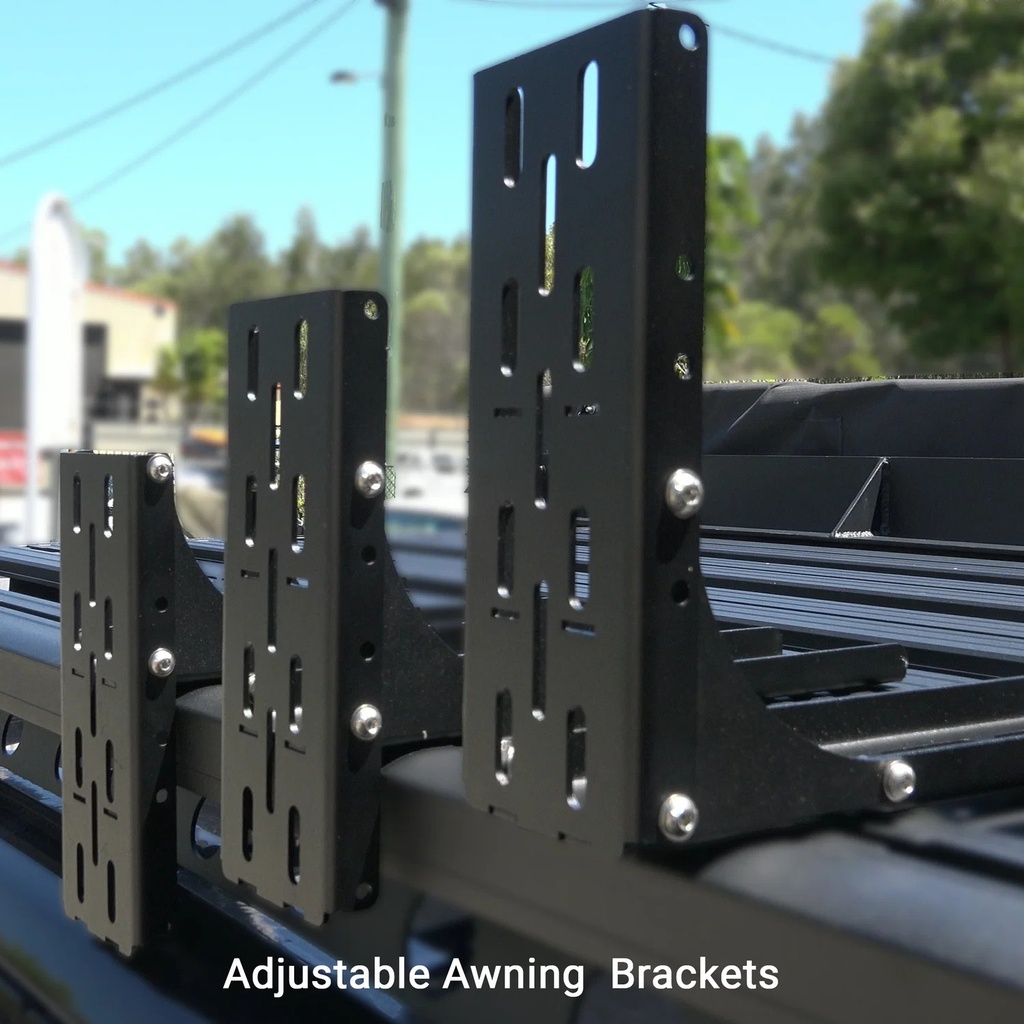

2 Heavy Duty Adjustable L Brackets. One fitment bracket must be attached to the stainless steel head stock at each end, a minimum distance of 1900 mm / 6' 2 ⁵¹/₆". If mounting to a roof rack then the rack will typically need to be a minimum 2m / 6'6 ⁴⁷/₆₄" in length.
It is recommended that the front and rear non trussed arms are secured using the included guy ropes and pegs to prevent excessive upward movement in all weather conditions.
Use guy ropes attached to 1-tonne webbing straps between the awning arms to manage water runoff and prevent pooling in heavy rain.
Avoid leaving up during snowfall to prevent canvas stretching.
Optional Accessories:
180 XT MAX Awning Wall Kit or universal solid or mesh wall can be attached to 50mm thick triple-stitched Genuine Velcro strip on the inside edge of the awning.
Awning To Tent bracket required for mounting the awning to a Bush Company Rooftop Tent
